Product information
- Category: CNC Controllers
- Controlled Axes: 8
- Axis Control Method: Panasonic RTEX
PULER3-RTEX CNC Controller

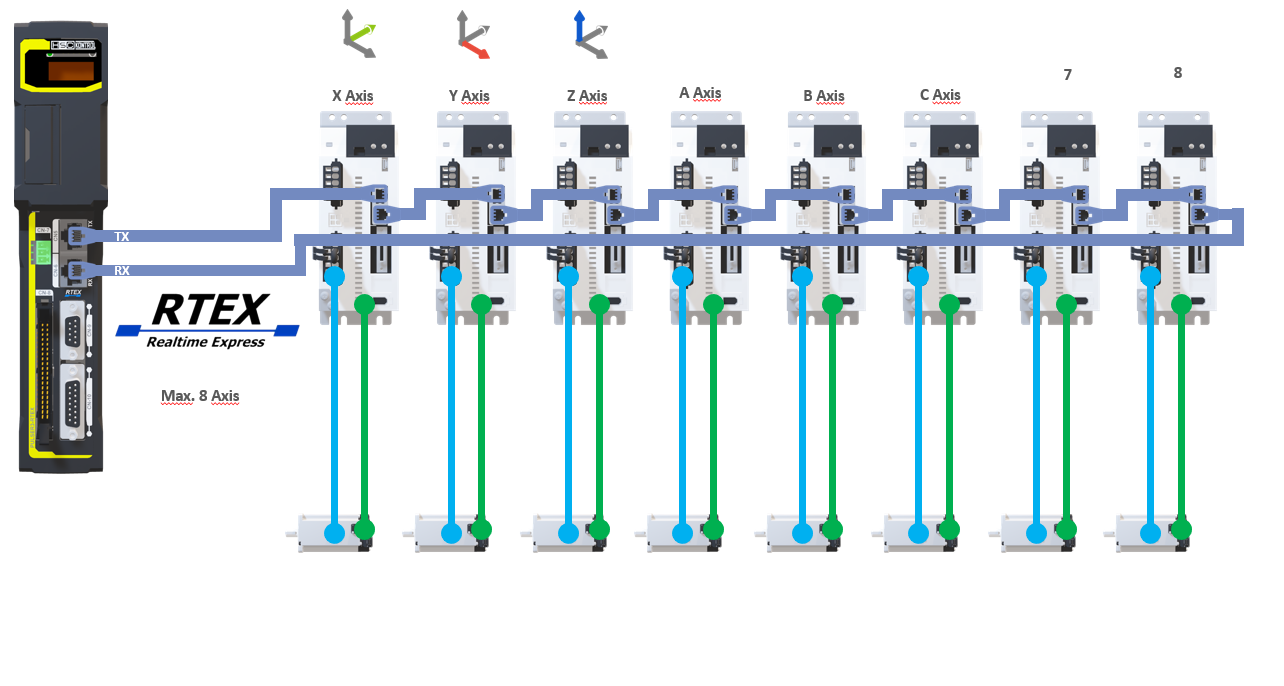

The Pulser3-RTEX leverages Panasonic's RTEX protocol to deliver closed-loop control for up to 8 axes of stepper or servo motors. Communication between the system and the drives is established via a single Ethernet cable, ensuring simple installation and significantly reducing wiring errors and failures.
The PULSER3-RTEX is equipped with 20 optically isolated digital inputs, configurable as either PNP or NPN, and 16 optically isolated, short-circuit protected digital outputs (NPN). For spindle speed adjustments, the integrated ±10V analog output provides precise control, while the built-in handwheel port simplifies manual axis movement.
What truly sets the PULSER3-RTEX apart is its embedded architecture. Time-critical tasks such as G-code processing, I/O control, and motion management are handled internally, ensuring uninterrupted performance. This robust design eliminates the impact of delays from external interfaces like Windows PCs or HMIs, making the PULSER3-RTEX an ideal choice for high-performance CNC systems.
