Next-Level CNC Controller for Limitless Possibilities
Discover the state-of-the-art CNC controller designed to enhance automation, precision, and reliability in your machines
Fully Customizable UI
Design the entire user interface to suit your needs using a Windows PC or HMI. Since all real-time operations occur within the Pulser3, even a standard laptop will be sufficient.
Stand Alone Controller

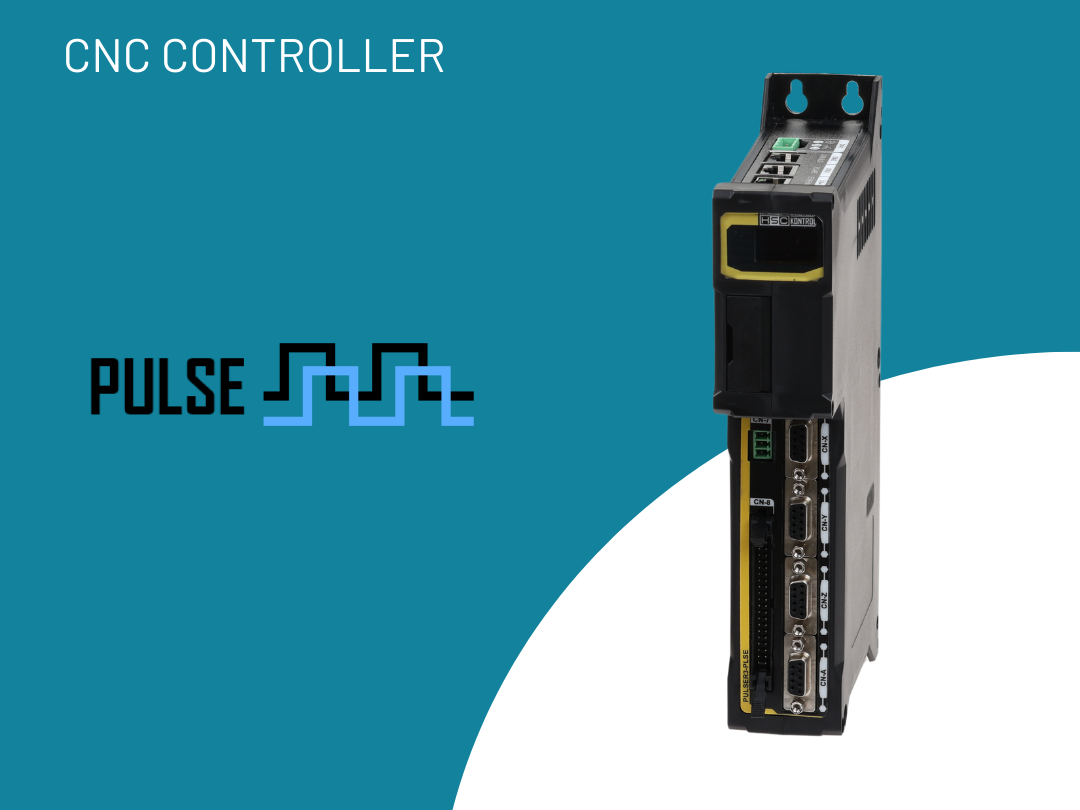

Pulser3 is an embedded, standalone device. All CNC, internal PLC, and communication processes are performed within the device with microsecond-level precision.
Your Machine, Your Rules

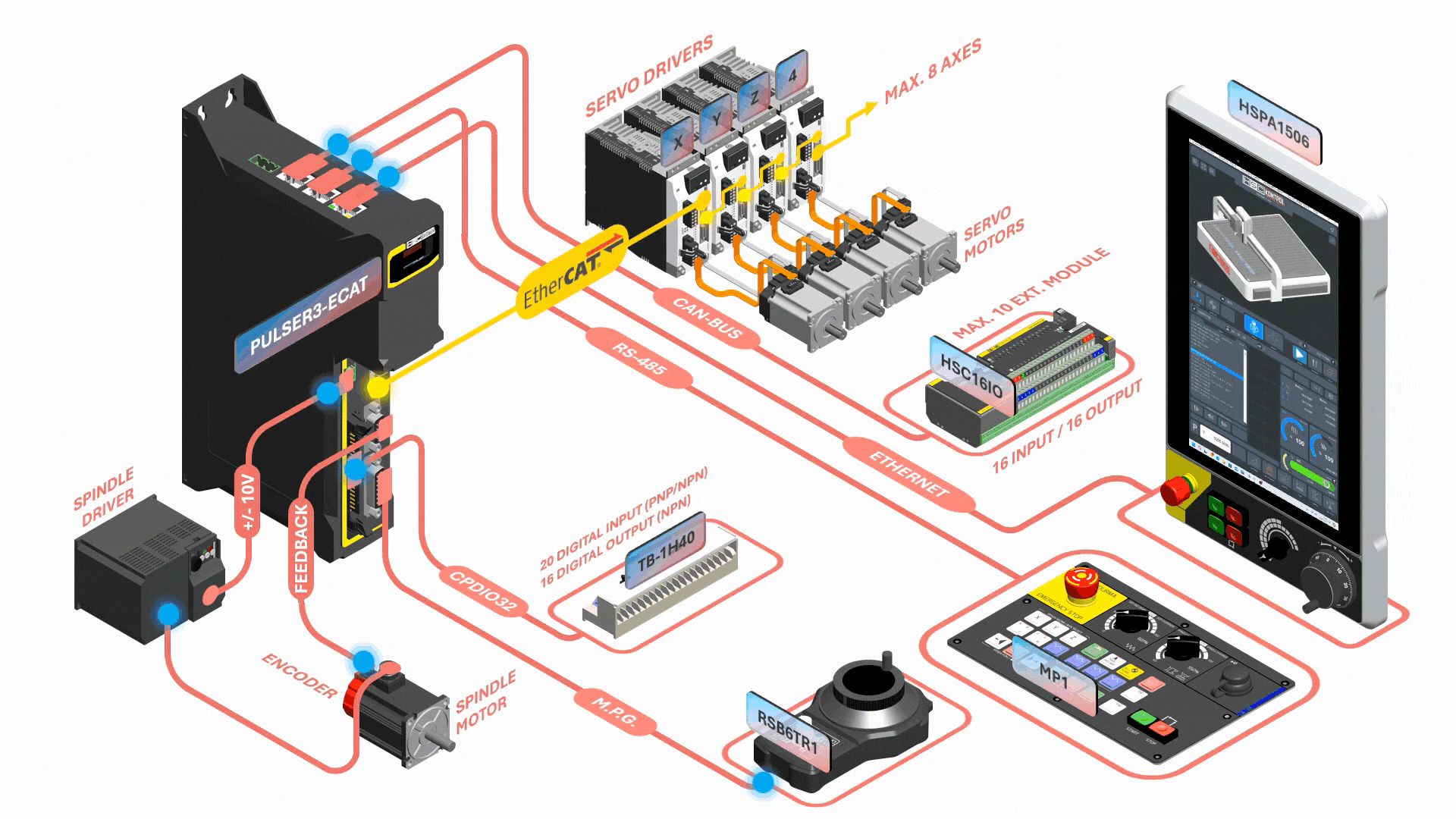

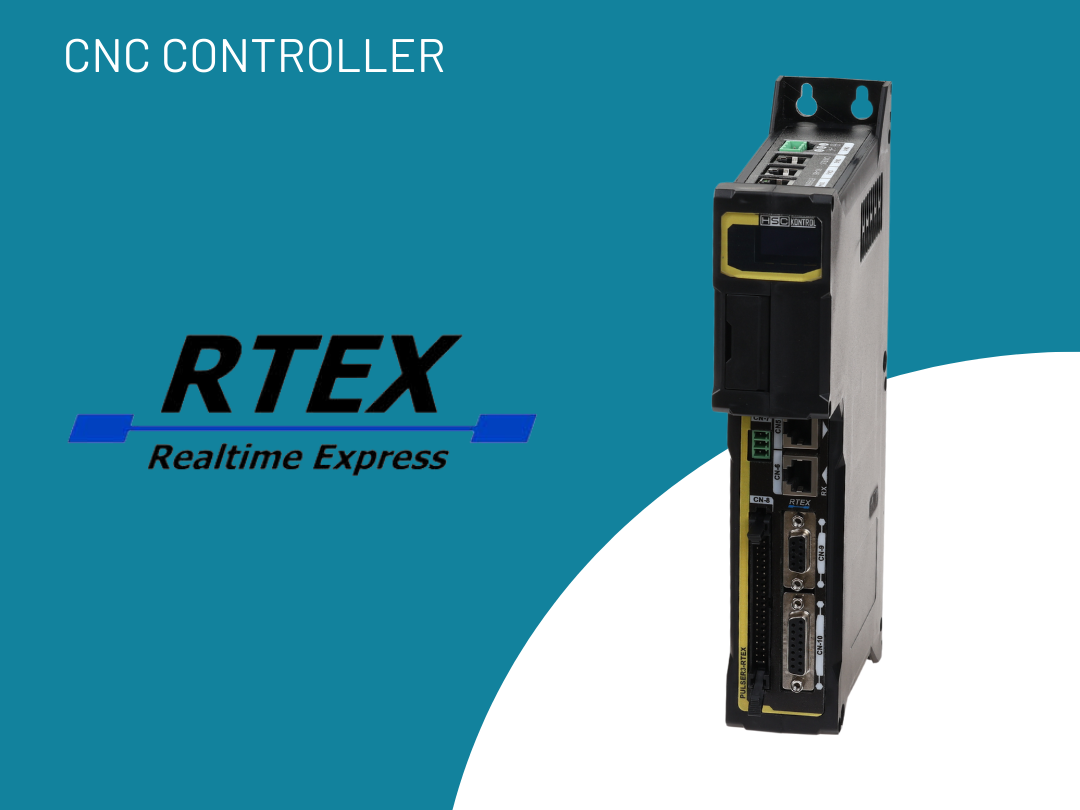

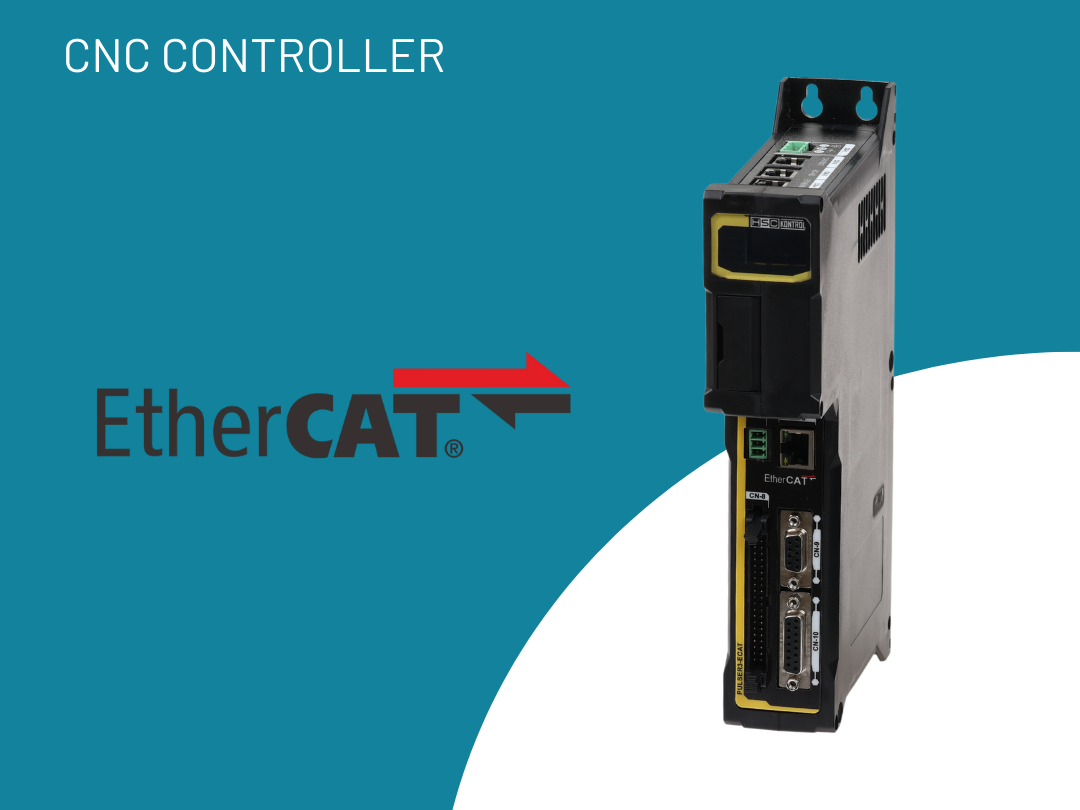

Choose between a cost-effective pulse output or closed-loop models, available in EtherCAT(Many step and servo brands) or RTEX (Panasonic) configurations, based on your needs.
Features
- Control up to 8 axes
- 20 optically isolated digital inputs (PNP/NPN)
- 16 optically isolated, short-circuit protected digital outputs

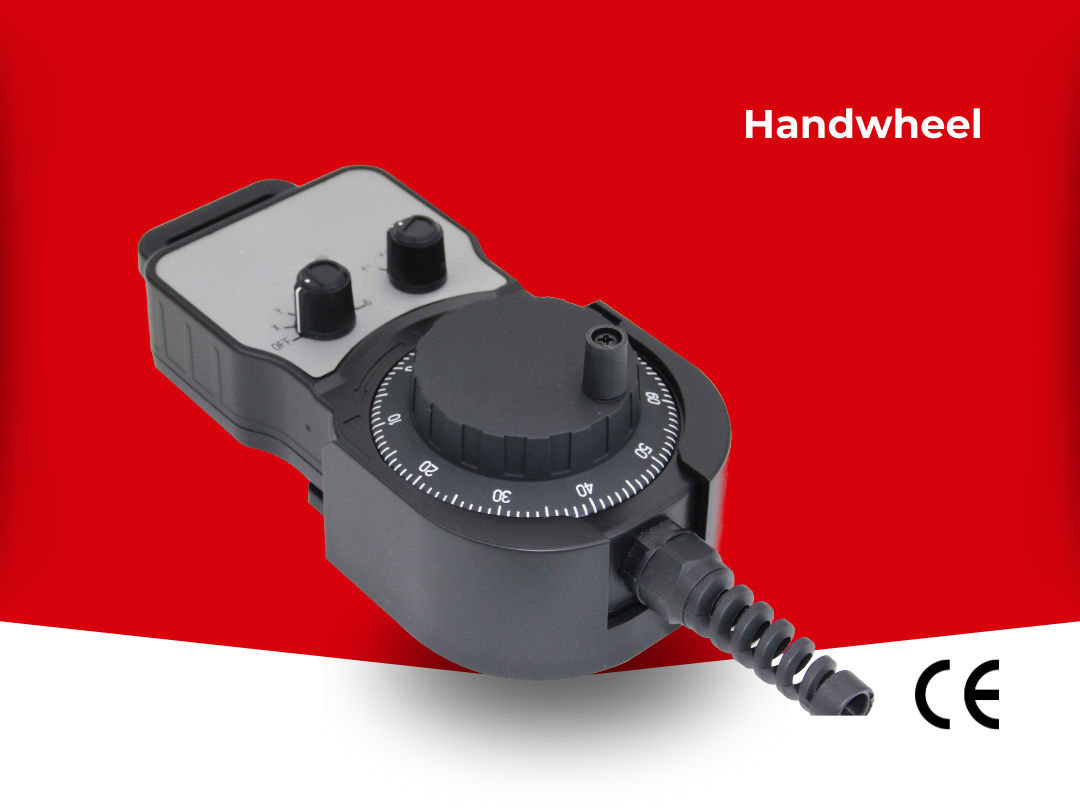

- External handwheel port

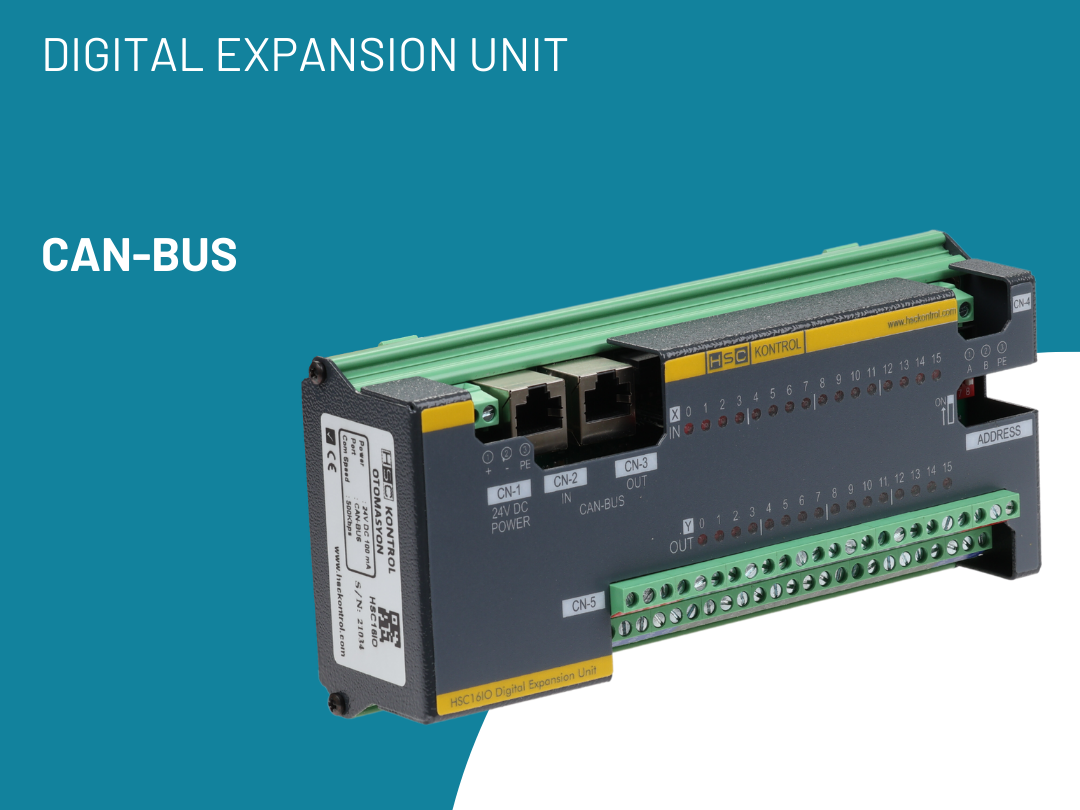

- Expandable up to 180 DI and 176 DO with extension modules
- Isolated RS485 Modbus master port
- Advanced resuming function (Power failure detection)
- Forward and reverse simulation
- Part rotation with G68
- Automatic cutting knife (tangent) axis angle control
- 5V line-receiver encoder port
- Spindle orientation with external encoder
- Rigid tapping with encoder synchronization
- Absolute operation without the need for homing
- Custom macro
- Supports 2 nested sub programs
- Advanced look ahead algorithm
And many more advanced features...
Clients
Projects
Devices Sold (And counting)
Years of Experience
HSC Studio
%100 Free, Design To Run-Time All In One Software

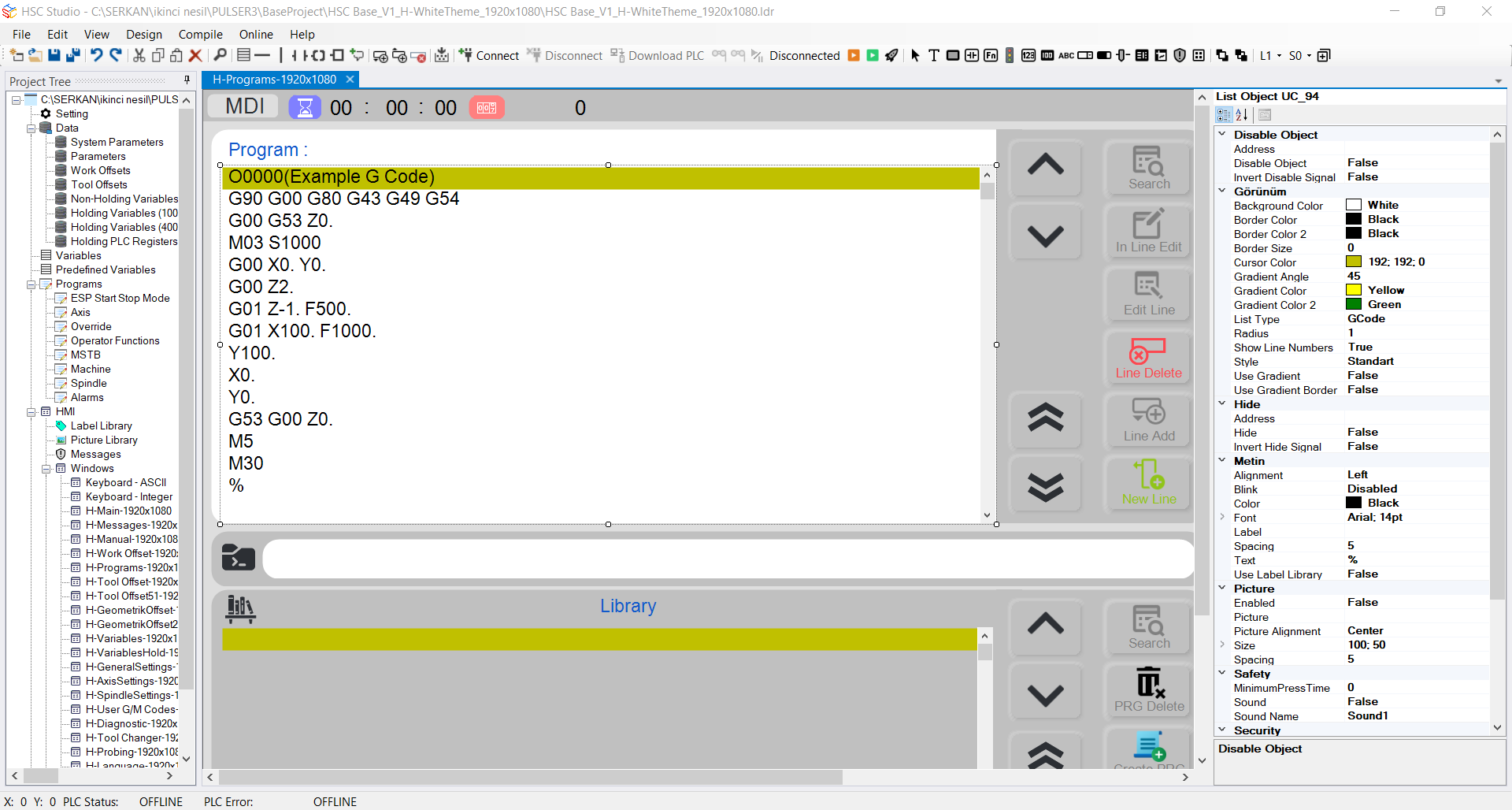

HMI Designer
Design your custom user interface effortlessly using the HMI editor with drag-and-drop functionality

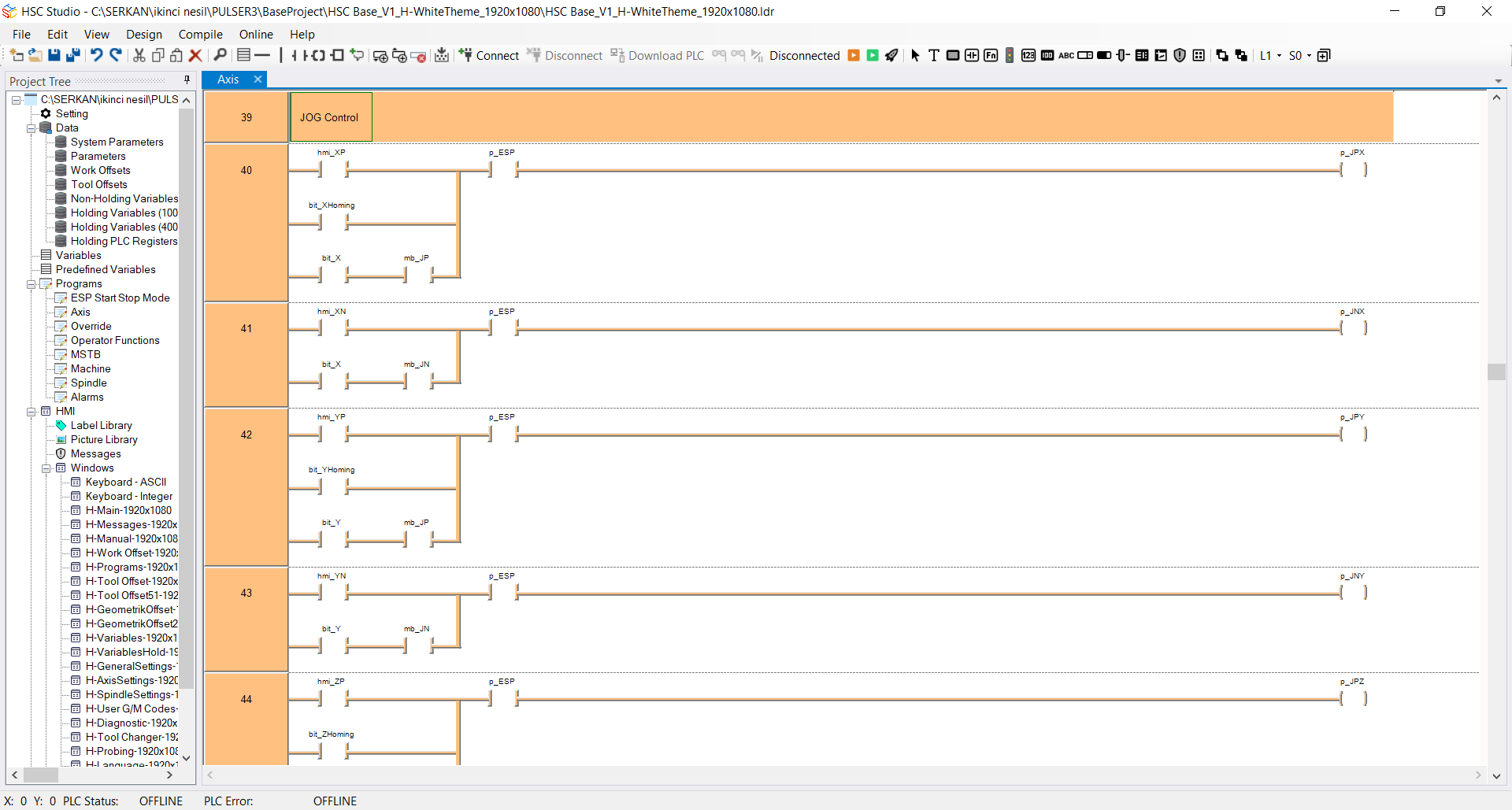

Ladder Editor
Customize all inputs and outputs with the Ladder editor. Create your own M, S, T, and B codes and define all preferences to suit your requirements.

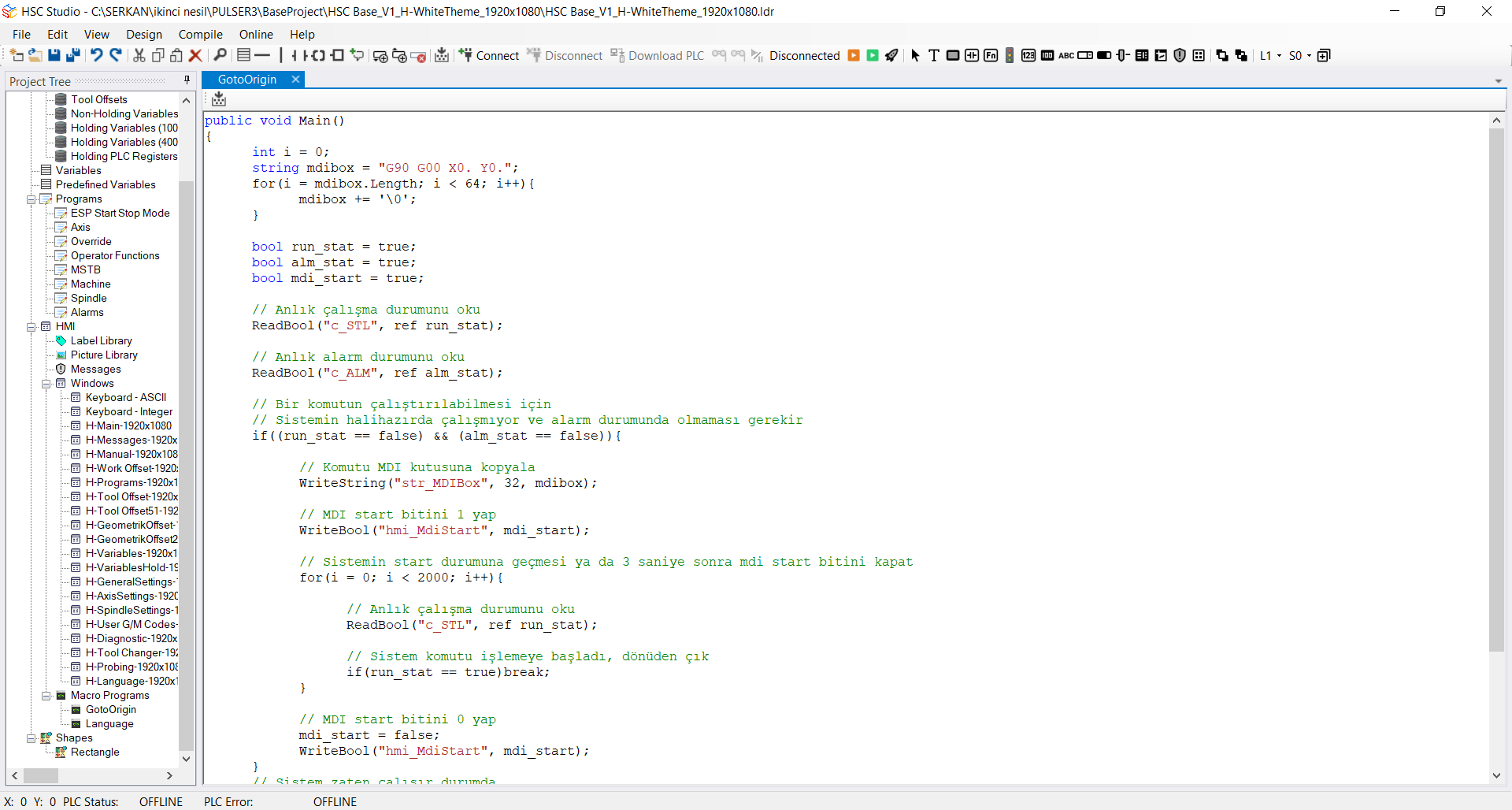

C# Macro
Create a C# macro and run it with a button or in the background. Access data, change language, execute G-code, transfer files to Pulser, and much more.

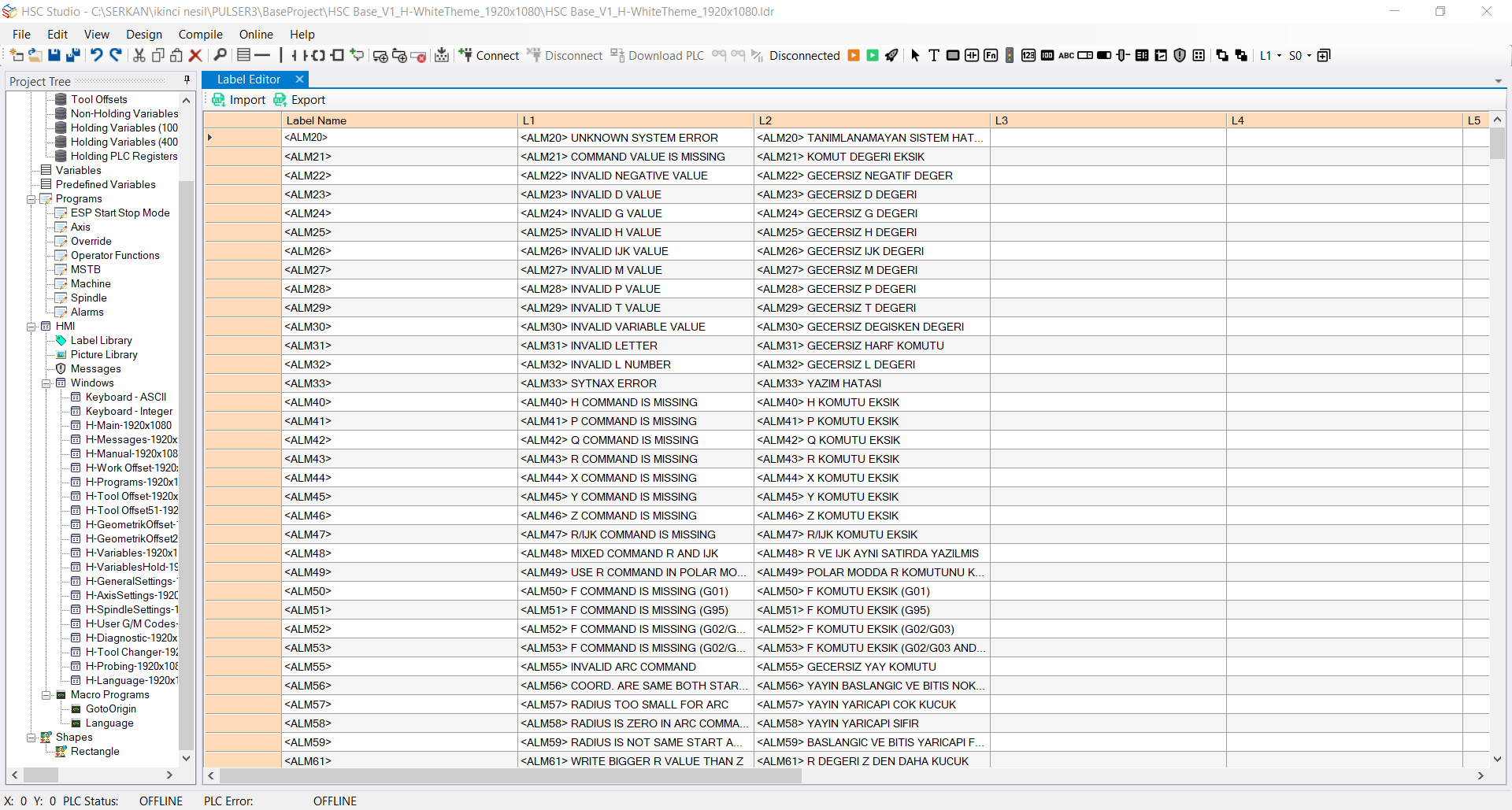

Multiple Languages
Do you export your machines to multiple countries? Provide the entire user interface with multi-language support. Import or export the language file in Excel format.

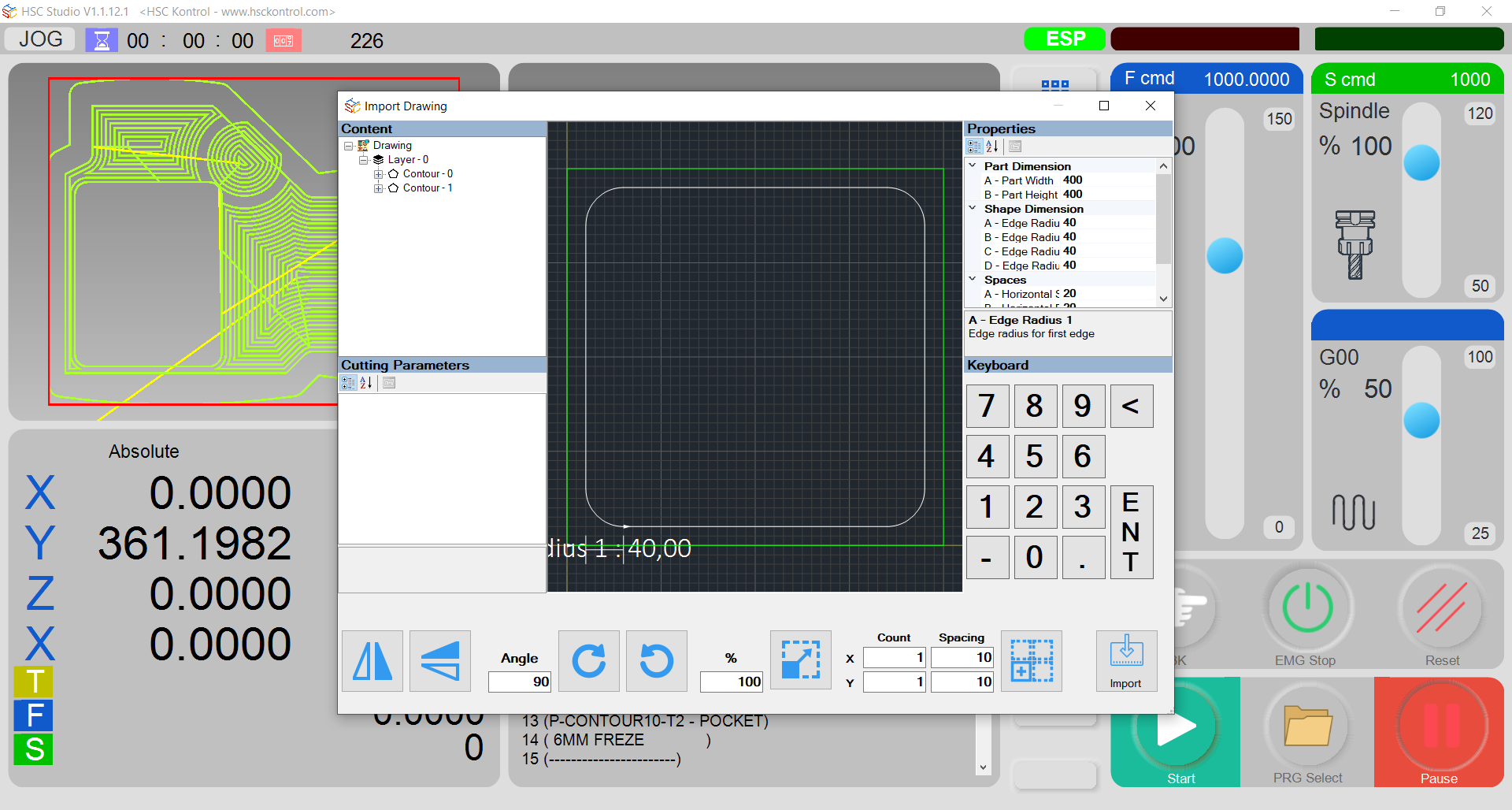

Ready To Use Shape Editor
Create ready-to-cut shapes with C#. Operators can cut these shapes directly without the need for an external CAM software. Or import DXF files directly.

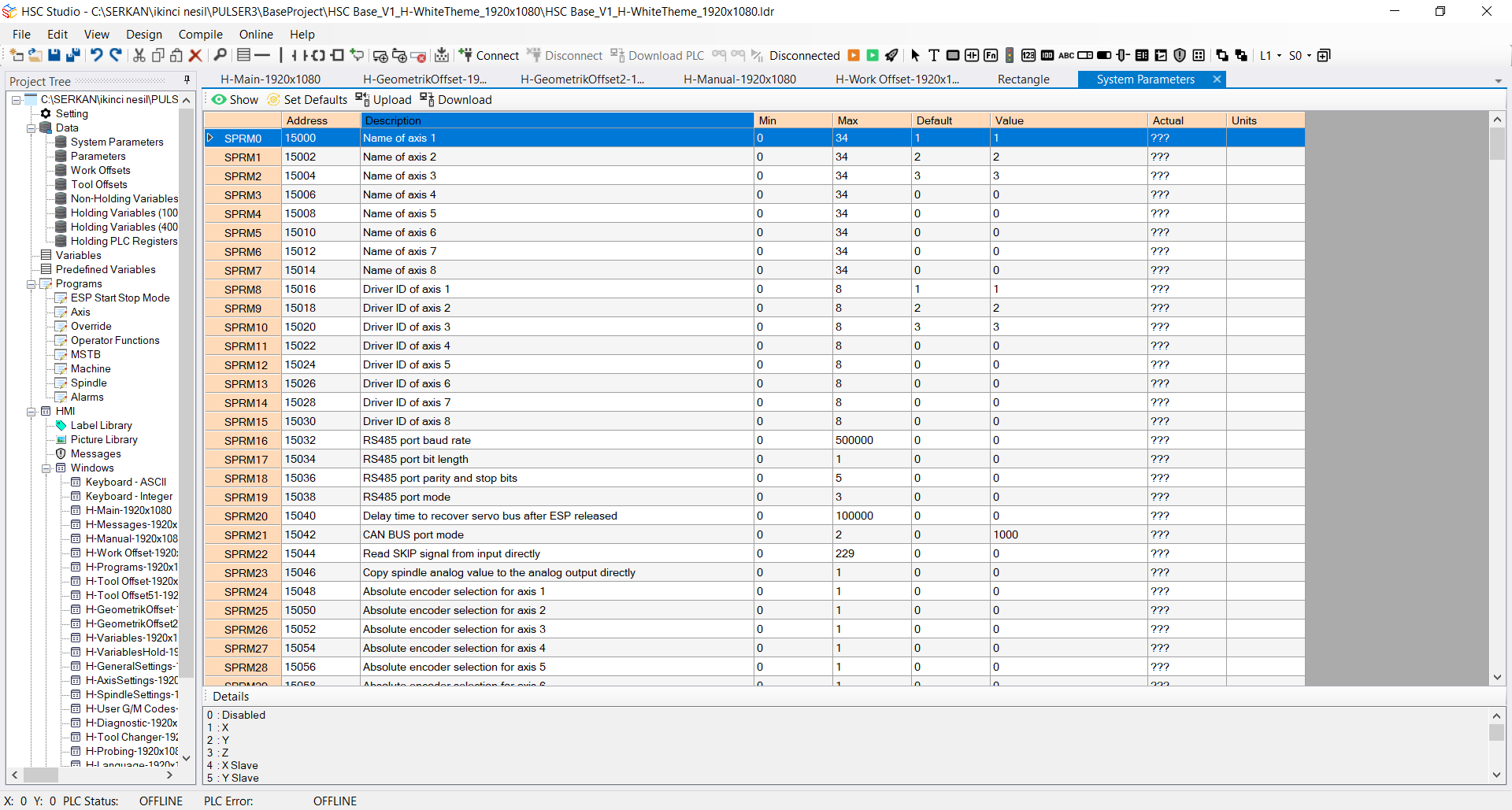

Data Access
Take full control of your parameters, offset data, and variables. Back up your data, and with a single click, get your machine ready to operate when reproducing on the same model.
Products
Browse our products
- All
- CNC Controller
- PC/HMI
- Accessories
Videos
Browse our videos
Look-Ahead Performance
In this video, you can see the Look-Ahead performance of the Pulser CNC controller. Pulser3 is an ideal solution for woodworking routers.
DXF Import And Shapes
In this polyurethane casting machine, you can explore the features Pulser3 offers specifically for such applications. Users can directly import DXF drawings or modify dimensions of pre-made shapes to operate the machine without the need for external CAM software. Additionally, Pulser3 facilitates essential processes such as pre-closing the nozzle and performing cleaning operations, ensuring seamless and efficient operation.
5 Axis Interpolation
This gold processing machine demonstrates control of up to 8 axes, including 5-axis simultaneous operation. With the specially developed surface scanning technology for this industry, bracelets or rings are scanned using a probe before machining.
Professional Cnc Router With HMI

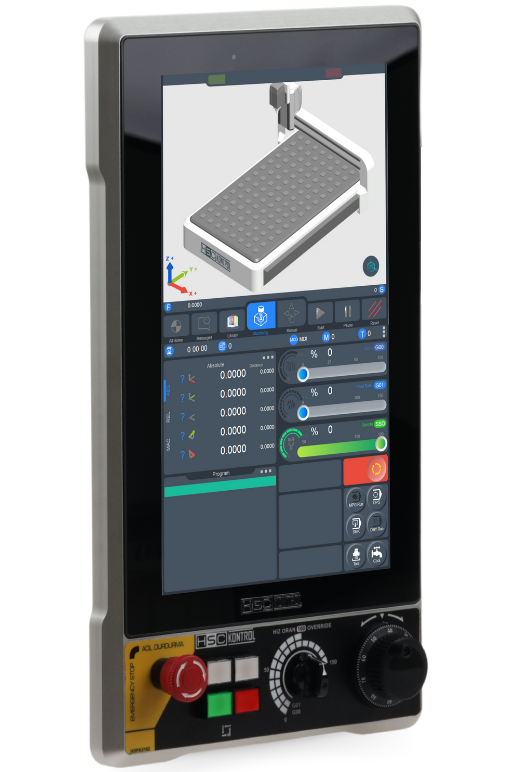

This machine features a 10.1-inch HMI as the Pulser3 interface, providing a cost-effective and compact solution.
Laser Cutting
This laser cutting table showcases the industry-specific features developed by Pulser3. Automatic Height Control (AHC) is handled directly by Pulser3 without the need for an external AHC module. Technology tables can be created, and sheet angles are automatically detected for precise cutting.
Plasma Table With AHC
This plasma cutting table showcases the industry-specific features developed by Pulser3. Automatic Height Control (AHC) is handled directly by Pulser3 without the need for an external AHC module. Technology tables can be created, and sheet angles are automatically detected for precise cutting.
